• Country
• Japan

• Manufacturer / Brand
• Nanaola (Nanao Radio Co., Ltd. - NRC); Tokyo

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241969

• Number of Transistors
• 8

• Semiconductors
• 2SA69 2SA92 2SA53 2SA102 2SB171 2SB171 2SB173 2SB173

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

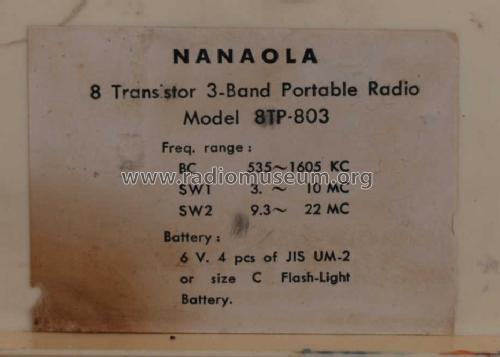

• Model: Highest Transistor 3 Band Hi-Fi 8TP-803 - Nanaola Nanao Radio Co., Ltd.

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 225 x 135 x 55 mm / 8.9 x 5.3 x 2.2 inch

• Notes

• See also Nanaola 8TP-803L (with a list of similar models).

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
