NRC 6 Transistor 6TP-102
Nanaola (Nanao Radio Co., Ltd. - NRC); Tokyo
- Country
- Japan
- Manufacturer / Brand
- Nanaola (Nanao Radio Co., Ltd. - NRC); Tokyo
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244355
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.1 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: NRC 6 Transistor 6TP-102 - Nanaola Nanao Radio Co., Ltd.
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.75 x 4.25 x 1.25 inch / 70 x 108 x 32 mm
- Notes
-

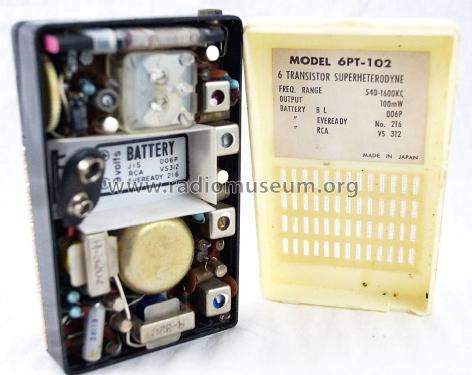

Nanaola Pocket AM Radio Model NRC 6 Transistor 6TP-102.
Frequency Range: 540 - 1600 kHz.
Made in Japan.
See also:
Viscount 6TP-102
Faraday 6TP-102
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
