• Country
• United States of America (USA)

• Manufacturer / Brand
• National Company; Cambridge & Malden (MA)

• Year
• 1933/1934

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 49561

• • alternative name: National Toy Co.
  • Brand: Thrillbox

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 57 24 58 58 56 59 24

• Main principle
• Superheterodyne (common); ZF/IF 500 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 2,5 / 180 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

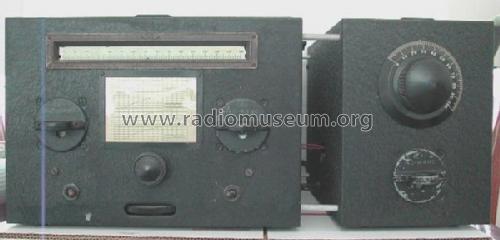

• Model: FB-XA - National Company; Cambridge &

• Shape
• Tablemodel, with any shape - general.

• Notes
• version with crystal filter and air-tuned IF transformers:
  coverage 1500 - 20000 kHz (coils FB A-E), 800 - 34000 kHz (with optional coils FB AA-F), 20 - 160 m amateur bands (with optional bandspread coils AB 20-160);
  optional external RF preselector;
  optional external power supplies 5880AB, 5887AB or high voltage 5897AB

• Price in first year of sale
• 43.00 $

• External source of data
• Ernst Erb

• Source of data
• Communications Receivers

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before
