- Country
- United States of America (USA)
- Manufacturer / Brand
- National Company; Cambridge & Malden (MA)
- Year
- 1939–1941
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 49595
-
- alternative name: National Toy Co.
- Brand: Thrillbox

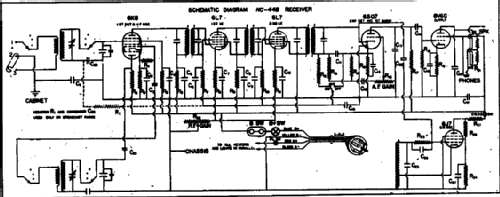

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: NC-44B - National Company; Cambridge &
- Shape
- Tablemodel, with any shape - general.
- Notes
- coverage 550 - 30000 kHz, bandspread in 80 - 10m ham bands, AM, CW (BFO);
6V battery operated model;
optional NC-44-TS cabinet speaker and RRA relay rack adaptor
- Net weight (2.2 lb = 1 kg)
- 20.2 kg / 44 lb 7.9 oz (44.493 lb)
- Price in first year of sale
- 83.00 $
- External source of data
- Ernst Erb
- Source of data
- Communications Receivers
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
