- Country
- United States of America (USA)
- Manufacturer / Brand
- National Company; Cambridge & Malden (MA)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 263250
-
- alternative name: National Toy Co.
- Brand: Thrillbox
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6AU6 6AG5 6C4 6AU6 6AU6 6AU6 6AL5 6AC7 12AU7 6BA6 6AU6 6T8 6V6GT 6C4 6SN7GT 6AL5 6SN7GT 6BG6G 5V4G 10BP4
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycle, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: NC-TV-10C - National Company; Cambridge &
- Shape
- Tablemodel, with any shape - general.
- Notes
-
10" round CRT b/w TV with 12 channel US standard VHF tuner.
Tube V14 Sync. Amp. 6C4 used only on sets with serial No. of 2610000 or larger
Two speakers 3 7/8' x 5 7/8'
- Literature/Schematics (1)

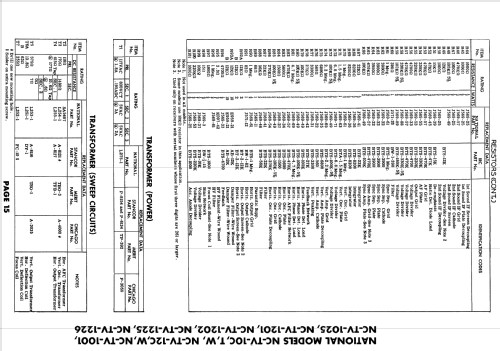

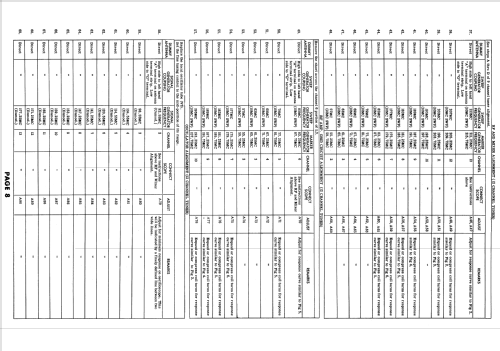

- Photofact Folder, Howard W. SAMS (Set 94 Folder 5 Date 5-50)
- Author
- Model page created by Geert Schulte. See "Data change" for further contributors.
