• Country
• United States of America (USA)

• Manufacturer / Brand
• National Company; Cambridge & Malden (MA)

• Year
• 1965 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 206594

• • alternative name: National Toy Co.
  • Brand: Thrillbox

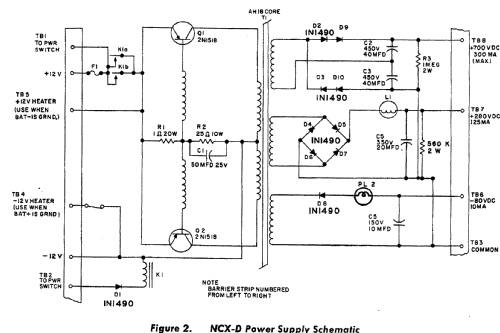

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12.6 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: NCX-D - National Company; Cambridge &

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 7.75 x 4.25 x 5.5 inch / 197 x 108 x 140 mm

• Notes
• This is the mobile DC/DC power unit for the National Models NCX-3 and NCX-5 tranceivers.

• Net weight (2.2 lb = 1 kg)
• 5 lb (5 lb 0 oz) / 2.270 kg

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by George Papaiz. See "Data change" for further contributors.
