• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118441

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA100 2SA100 2SA100 2SB175 2SB176 2SB176

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

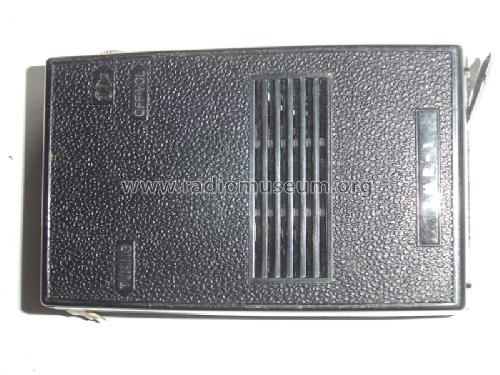

• Model: TMR-1 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 104 x 32 x 64 mm / 4.1 x 1.3 x 2.5 inch

• Notes
• Ohrhöreranschluss.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.

• Other Models

• Here you find 3052 models, 2829 with images and 634 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
