VHF Marine Radiotelephone RT6500R
Navico UK Ltd; Romsey
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Navico UK Ltd; Romsey
- Year
- 1992 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 317475
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
- Material
- Metal case
- from Radiomuseum.org

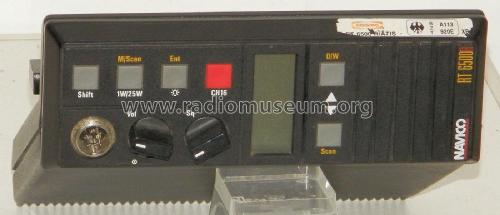

- Model: VHF Marine Radiotelephone RT6500R - Navico UK Ltd; Romsey
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 190 x 60 x 230 mm / 7.5 x 2.4 x 9.1 inch
- Notes
-
VHF radio telephone for marine radio.
Frequency range 156 to 163 MHz, frequency modulation, 25 kHz channel spacing, 55 marine radio channels (switchable USA or international channel assignment), 10 weather channels (reception only), 16 private channels, two-channel monitoring (working channel and channel 16), scan function; Transmitting power 25 W / 1 W, NF power 2 W.
Approval BZT A113 920E(UKW-Funktelefon für Seefunk.
Frequenzbereich 156 bis 163 MHz, Frequenzmodulation, 25 kHz Kanalabstand, 55 Seefunkkanäle (umschaltbar USA- bzw. internationale Kanalbelegung), 10 Wetterkanäle (nur Empfang), 16 Privatkanäle, Zweikanalüberwachung (Arbeitskanal und Kanal 16), Scan-Funktion; Sendeleistung 25 W/1 W, NF-Leistung 2 W.
Zulassung BZT A113 920E)
- Net weight (2.2 lb = 1 kg)
- 1.470 kg / 3 lb 3.8 oz (3.238 lb)
- Mentioned in
- -- Original-techn. papers. (Owners Manual VHF Marine Radiotelephone RT6500 and RT6500S)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
