• Country
• Japan

• Manufacturer / Brand
• NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo

• Year
• 1988 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 271355

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50/60Hz 110/120/220/240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Graphic Equalizer AG-100E [SG] - NEC Corporation, Nippon

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 110 x 261 mm / 17.7 x 4.3 x 10.3 inch

• Notes

• NEC 2x5 Band Stereo Graphic Equalizer Model AG-100E Type SG.
  Frequency Response 20 - 40000Hz, +0, -1,5 dB
  Control Center Frequency: 60, 240, 1000, 4000, 16000Hz +/- 10dB
  Graphic Display with 110 LED's
  Power Consumption 7 Watts.



• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Mentioned in

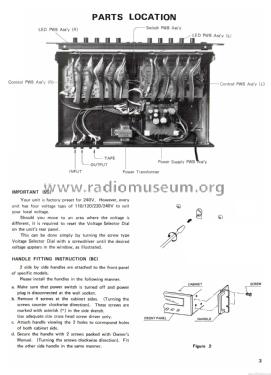

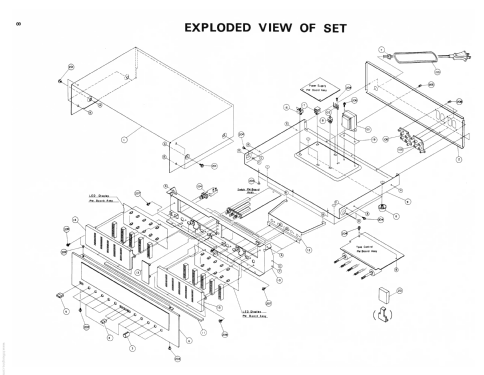

• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
