• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96953

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EBF89 EM84

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220, 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: 27552 Art. Nr. 821/82 - Neckermann-Versand KG;

• Dimensions (WHD)
• 625 x 210 x 230 mm / 24.6 x 8.3 x 9.1 inch

• Notes
• Stereo-Gerät mit KW-Lupe.
  Hersteller: Körting GmbH Grassau.

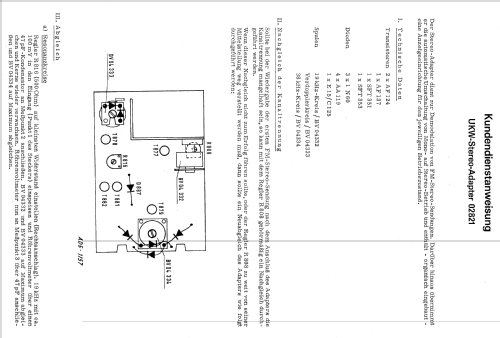

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Oswald Bettendorf. See "Data change" for further contributors.
