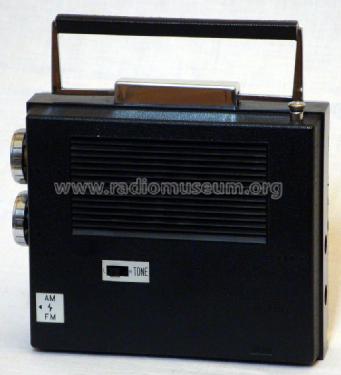

AM/FM 12 Transistor
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1969 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239163
-
- Brand: Twen Tone
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 6LR61: 1 x 9 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM/FM 12 Transistor - Neckermann-Versand KG;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 143 x 116 x 48 mm / 5.6 x 4.6 x 1.9 inch
- Notes
-
Made in Taiwan.
- Net weight (2.2 lb = 1 kg)
- 0.440 kg / 0 lb 15.5 oz (0.969 lb)
- Author
- Model page created by Holger Struthoff. See "Data change" for further contributors.
- Other Models
-
Here you find 560 models, 502 with images and 185 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
