• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102679

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF124 AF125 AF137 OC170 OC170 SFT351 TF65 SFT351 AC117 AC117 AA112 AA112 AA112 OA150 OA150

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1.3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Arosa 26052 Art. Nr. 822/38 - Neckermann-Versand KG;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 170 x 90 mm / 10.6 x 6.7 x 3.5 inch

• Notes

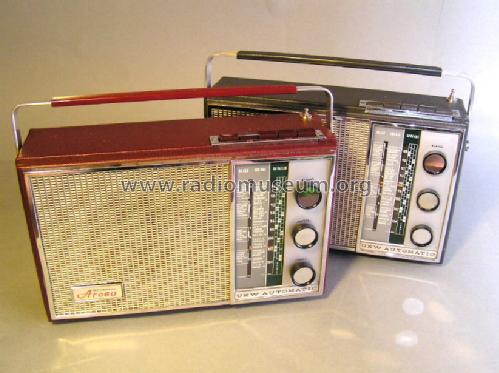

• Hergestellt von der Fa. Körting-Radio. externes Netzteil, zuschaltbare automatische Scharfabstimmung bei UKW. Farben: anthrazit (02; kirschrot (64)

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 195.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Echtner. See "Data change" for further contributors.
