Farbfernsehgerät Körting 59311 837/830

Neckermann-Versand KG; Frankfurt a.M.

Data
Forum
Pictures
Collections

  • Year
  • 1968
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 236062
    • Brand: Twen Tone

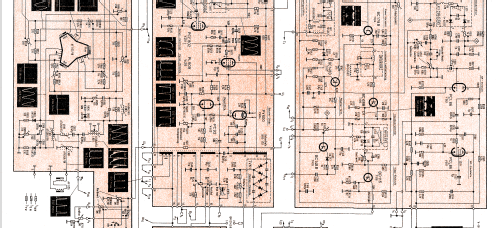

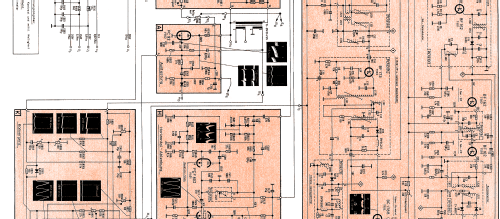

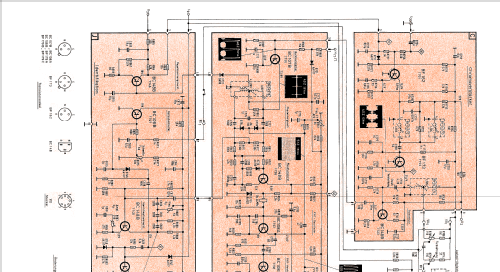

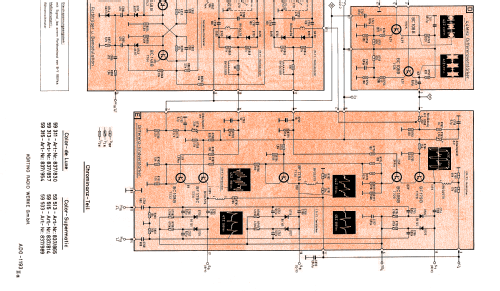

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • 39
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Farbfernsehgerät Körting 59311 837/830 - Neckermann-Versand KG;
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • Körting 55 cm Farbfernsehgerät Nr. 59311, zweite Körting Farbchassisgeneration, 7 Röhren & Bildröhre,  Farbsignalteil mit steckbaren Modulen, Kaskade, 90 Grad Ablenkung.

    Fertigung für Neckermann Versand KG, Frankfurt a.M.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Holger Ortmann. See "Data change" for further contributors.
