Farbfernsehgerät 59515 837/814
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 236086
-
- Brand: Twen Tone
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb
wb

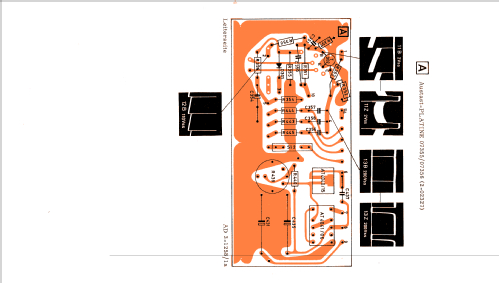

Aus Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- 39
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Farbfernsehgerät 59515 837/814 - Neckermann-Versand KG;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Körting Nummer 59515, zweite Körting Farbchassisgeneration, 7 Röhren & Bildröhre, Farbsignalteil mit steckbaren Modulen, Kaskade, 90 Grad Ablenkung
Schaltbild siehe Farbfernsehgerät 59311 837/830.
