• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224551

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 ECH81 EM85 EBC41 EF89 EL84 EL84 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

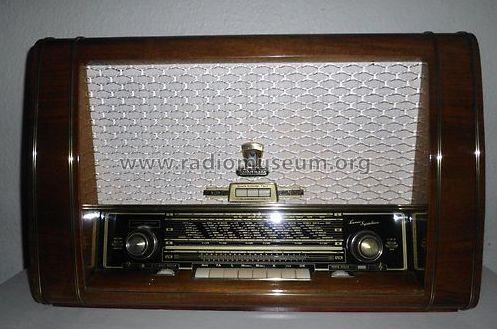

• Model: Luxus Syntektor 111/29 - Neckermann-Versand KG;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 400 x 290 mm / 26 x 15.7 x 11.4 inch

• Notes

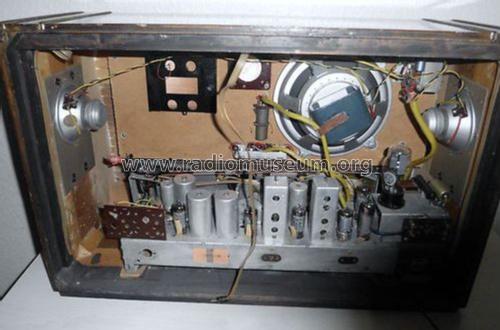

• Synchrodetektor; 2 elektrostatische LS plus 3 Pdyn. Fabrikation Körting.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
