• Country
• Alemania

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1977

• Category
• Televisión (TV) o monitor

• Radiomuseum.org ID
• 197184

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodino en general

• Wave bands
• VHF/UHF (see notes for details)

• Power type and voltage
• Red: Corriente alterna (CA, Inglés = AC) / 220 Volt

• Altavoz
• Altavoz dinámico (de imán permanente)

• Material
• Plástico moderno (Nunca bakelita o catalina)

• from Radiomuseum.org

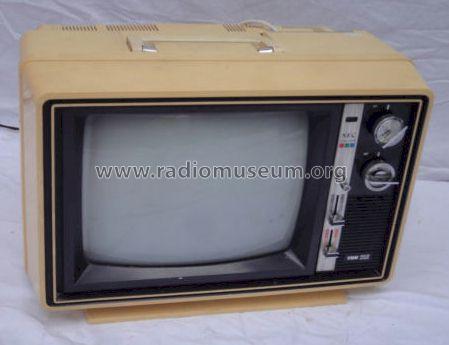

• Model: NEC TBS Solid State PAL Color Portable 36 cm 676/500 [01 & 09] - Neckermann-Versand KG;

• Forma
• Sobremesa de cualquier forma, detalles no conocidos.

• Dimensions (WHD)
• 510 x 330 x 410 mm / 20.1 x 13 x 16.1 inch

• Notes

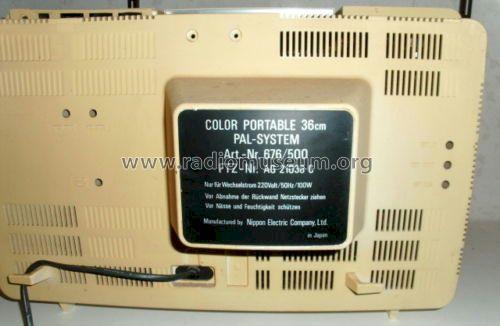

• Neckermann (NEC Japan) PAL Color Portable 36 cm 676/500;
  CCIR B/G VHF Trommel & UHF Abstimmradtuner, AFC, TBS-Ton/Bild Sofort Elektronik, Modulchassis, 8 IC´s, 100 W Leistungsaufnahme.
  Ausführung: Anthrazit (01) & Altweiß (09).

• Price in first year of sale
• 698.00 DM

• Mentioned in
• -- Original prospect or advert (Rundfunk Phono Fernsehen Auszug aus Herbst/Winter 77/78)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
