• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71747

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL86 EM84

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125 AA113 AA113 AA116 B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Material
• Wooden case

• from Radiomuseum.org

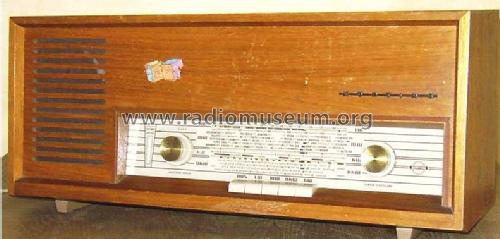

• Model: Oslo 25155 Art. Nr. 821/18 [Nussbaum] - Neckermann-Versand KG;

• Shape
• Tablemodel with Push Buttons.

• Notes

• Hersteller Körting.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
