• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325854

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BF195 BF194 TBA570 AC187 AC188 AC117 AA116 AA116 BZY87 BA166 BA166 B30C400 1N4001 1N4001

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220-230 / 3R12: 3 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

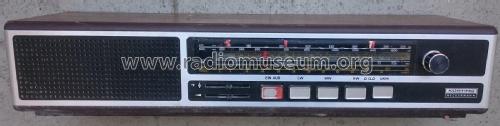

• Model: Oslo Körting Ch= 33341 Art. Nr. 826/219 - Neckermann-Versand KG;

• Shape
• Tablemodel with Push Buttons.

• Notes

• In der Bedienungsanleitung steht 220V, auf der Rückwand steht 230V ~

  siehe auch Siemens Klangmeister RG311

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
