• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240480

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

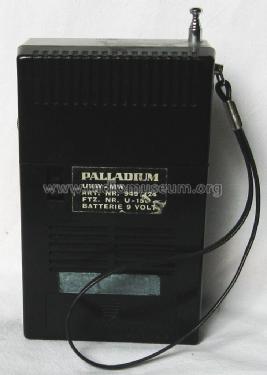

• Model: Palladium 949/124 - Neckermann-Versand KG;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 82 x 150 x 45 mm / 3.2 x 5.9 x 1.8 inch

• Notes

• Palladium MW / UKW Taschenradio mit Trageschlaufe, Front silber spray

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
