• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126598

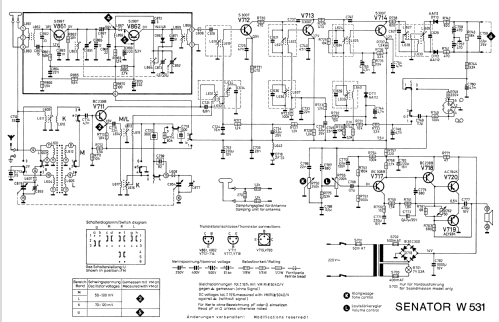

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 16 cm = 6.3 inch

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Senator W531 Bestell Nr. 00969 / 00970 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 120 x 175 mm / 20.1 x 4.7 x 6.9 inch

• Notes

• 2 Ausführungen:

  Bestell-Nr. 00969 = holzfarbig;
  Bestell-Nr. 00970 = weiß.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Klemens Rhode. See "Data change" for further contributors.
