Steuergerät I (1) 29576 Art. Nr. 821/845
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1967 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93992
-
- Brand: Twen Tone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- Semiconductors present.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage

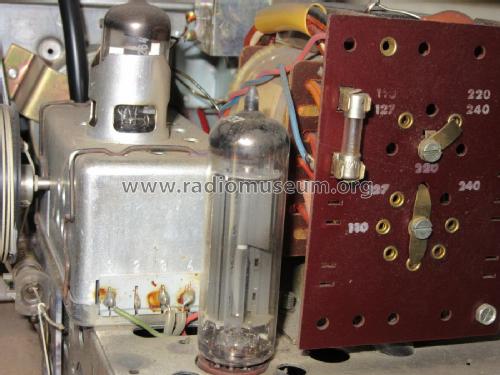

- Alternating Current supply (AC) / 110, 127, 220, 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Steuergerät I 29576 Art. Nr. 821/845 - Neckermann-Versand KG;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 560 x 235 x 195 mm / 22 x 9.3 x 7.7 inch
- Notes
-
Hersteller: Körting, Grassau
The FM Stereo adapter of this radio builds with 5 transistors.
- Net weight (2.2 lb = 1 kg)
- 8.8 kg / 19 lb 6.1 oz (19.383 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Joachim Glüder. See "Data change" for further contributors.
- Other Models
-
Here you find 560 models, 502 with images and 185 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
Collections
The model Steuergerät I (1) is part of the collections of the following members.
Forum contributions about this model: Neckermann-Versand: Steuergerät I 29576 Art. Nr. 821/845
Threads: 1 | Posts: 1
Über die Zusammenarbeit von Neckermann und Körting ist ja alles bekannt. Einer Internetquelle entnahm ich, dass Körting auch für andere Hersteller, z.B. Siemens und Rosita, gefertigt hat. Die Suche im RM mit Hilfe der ungewöhnlichen Röhrenbestückung (ECLL800 mit EZ81 und EM84) scheint das zu bestätigen.
Joachim Glüder, 01.Apr.06
