• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186902

• • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

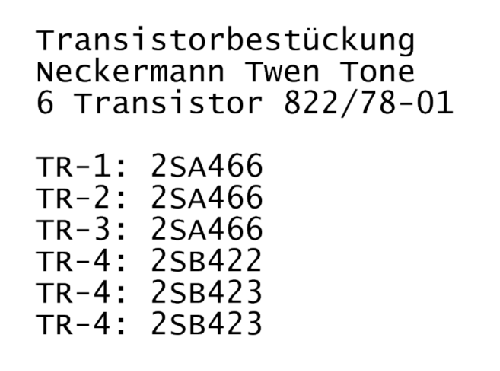

• Semiconductors
• 2SA466 2SA466 2SA466 2SB422 2SB423 2SB423

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Twen Tone - 6 Transistor 822/78-01 - Neckermann-Versand KG;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 62 x 96 x 34 mm / 2.4 x 3.8 x 1.3 inch

• Notes

• Made in Japan.

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Werner Wussow. See "Data change" for further contributors.
