Twen Tone 9 Transistor Art. Nr. 822/83 (Japan 106)

Neckermann-Versand KG; Frankfurt a.M.

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Neckermann-Versand KG; Frankfurt a.M.

Year
1968 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
179874

- Brand: Twen Tone

Schematics

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1915955) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 2623925) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1915957) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1136641) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1136642) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1136643) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382278) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382279) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382280) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382281) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382282) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382283) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382284) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382285) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1382286) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1915956) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Twen Tone 9 Transistor Art. Nr. 822/83 ; Neckermann-Versand (ID = 1915958) Radio — Neckermann-Versand Twen Tone 9 Transistor Art. Nr. 822/83 (1)

Technical Specifications

Number of Transistors
9

Semiconductors
2SA235 2SA235 2SA350 2SA234 2SB75 2SB75 2SB75 2SB77 2SB77

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz

Tuned circuits
4 AM circuit(s) 7 FM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Dry Batteries / PP3: 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Twen Tone 9 Transistor Art. Nr. 822/83 - Neckermann-Versand KG;

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
75 x 115 x 37 mm / 3 x 4.5 x 1.5 inch

Notes

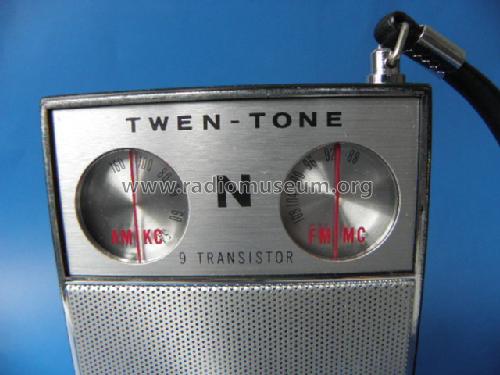

Neckermann Twen-Tone 822/83 hat getrennte Skalen und Drehkondensatoren für FM und AM.
Am Gehäuseboden ist 106 Japan eingeprägt.
Siehe auch Quelle Universum TR 2325.

Made in Japan 106

Net weight (2.2 lb = 1 kg)
0.270 kg / 0 lb 9.5 oz (0.595 lb)

Author
Model page created by Bernhard Nagel. See "Data change" for further contributors.
