- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Neeco (Brand), National Electric and Engineering Company Ltd. (Distributor); Christchurch.
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346459

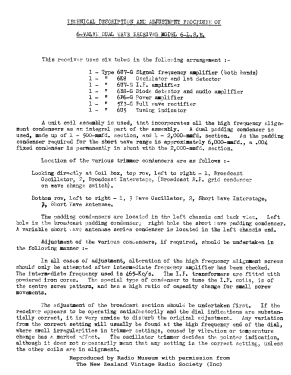

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: NEECO 140 - Neeco Brand, National Electric
- Shape
- Tablemodel, low profile (big size).
- Notes
-
6 valve plus magic eye dual wave superhet with RF stage NEECO Model 140 of 1940.
Manufactured by Collier & Beale Ltd for National Electric & Engineering Co. Ltd.
See also NEECO Model 641 of 1941.
- Mentioned in
- -- Original prospect or advert (Manawatu Standard 1 June 1940 Page 11)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
