• Country
• United States of America (USA)

• Manufacturer / Brand
• Nermco, New England Radio Mfg. Co.; Boston, MA

• Year
• 1922 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336742

• Number of Tubes
• 3

• Valves / Tubes

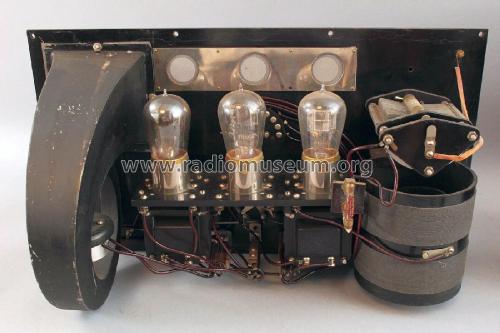

• UV200 UV201 UV201

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Horn

• Material

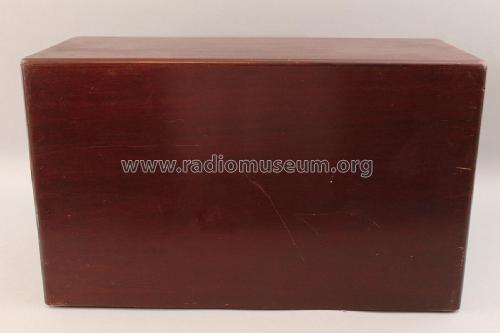

• Wooden case

• from Radiomuseum.org

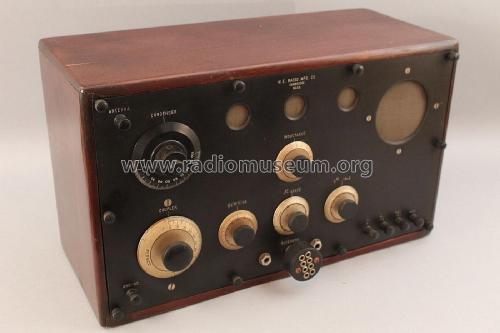

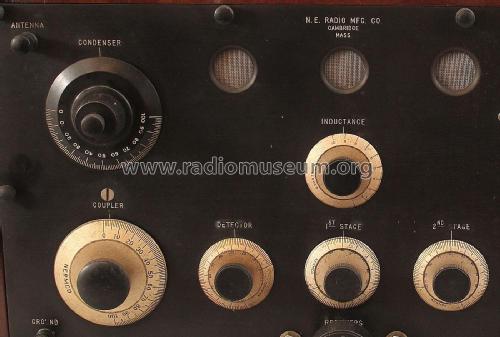

• Model: 3-Tube Receiver - Nermco, New England Radio Mfg.

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 19 x 11.25 x 8 inch / 483 x 286 x 203 mm

• Notes

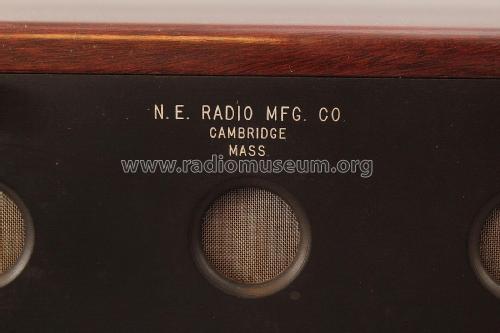

• New England Radio Mfg. Co. 3-Tube receiver.

• Net weight (2.2 lb = 1 kg)
• 26 lb 8 oz (26.5 lb) / 12.031 kg

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
