Röhrenprüf-Zusatzgerät MZ249 A
Neuberger, Josef; München
- Country
- Germany
- Manufacturer / Brand
- Neuberger, Josef; München
- Year
- 1940 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 118682
Mit Hauptgerät We 237

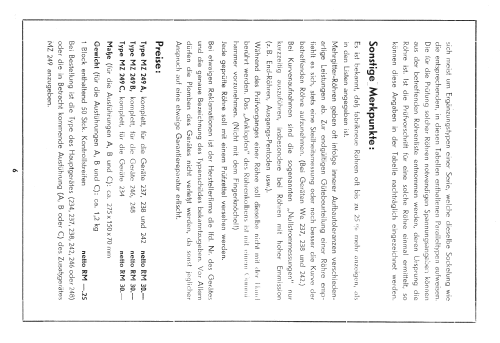

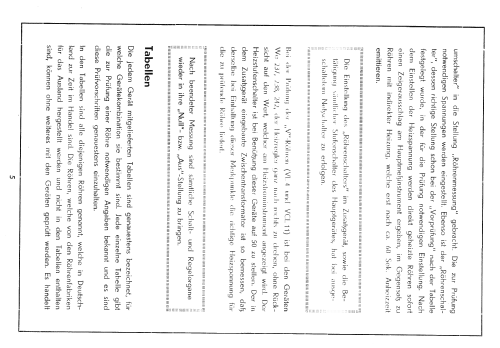

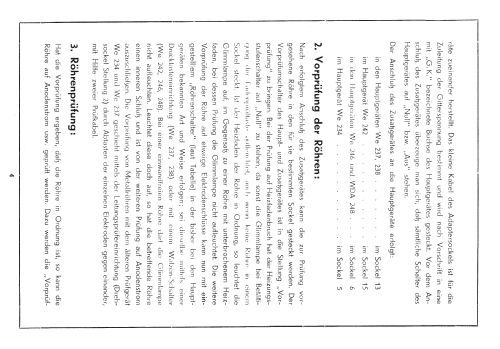

Bild aus Prospekt.
Bild aus Prospekt.
Typenschild leider in schlechtem Zustand!
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / 110 - 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Röhrenprüf-Zusatzgerät MZ249 [A] - Neuberger, Josef; München
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 270 x 70 x 15 mm / 10.6 x 2.8 x 0.6 inch
- Notes
-

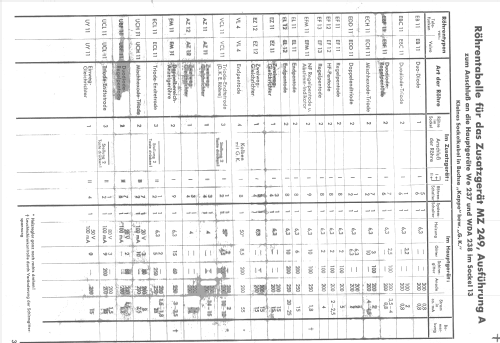

4 eingebaute Fassungen für: AZ11, AZ12, EB11, EBC11, EBF11, ECH11, EDD11, EF11, EF12, EF13, EFM11, EL11, EL12, EZ11, EZ12, VL4, VCL11.
Zur Ergänzung der Neuberger Röhrenprüfgeräte WE237, WDA238 und WE242.
- Price in first year of sale
- 30.00 RM
- Author
- Model page created by a member from A. See "Data change" for further contributors.
