• Country
• Germany

• Manufacturer / Brand
• Neuberger, Josef; München

• Year
• 1940 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 118683

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 110 - 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

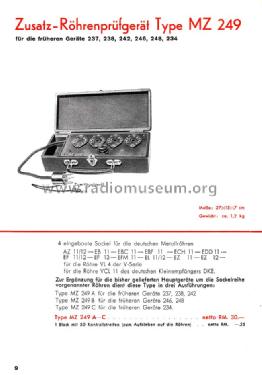

• Model: Röhrenprüf-Zusatzgerät MZ249 [B] - Neuberger, Josef; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 70 x 150 mm / 10.6 x 2.8 x 5.9 inch

• Notes

• 4 eingebaute Fassungen für: AZ11, AZ12, EB11, EBC11, EBF11, ECH11, EDD11, EF11, EF12, EF13, EFM11, EL11, EL12, EZ11, EZ12, VL4, VCL11.
  Zur Ergänzung der Neuberger Röhrenprüfgeräte WE246 und WDA248.

• Price in first year of sale
• 30.00 RM

• Author
• Model page created by a member from A. See "Data change" for further contributors.
