Röhrenprüfgerät We242 - W242
Neuberger, Josef; München
- Country
- Germany
- Manufacturer / Brand
- Neuberger, Josef; München
- Year
- 1936
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 93337

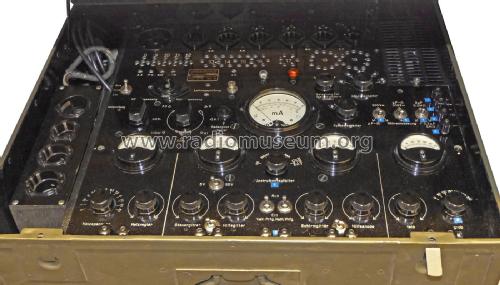

Sammlung: “Das Rundfunkmuseum“ in Cham

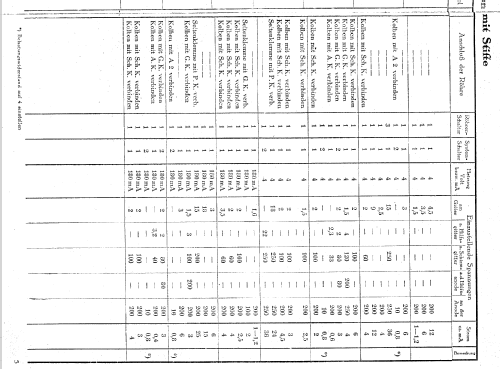

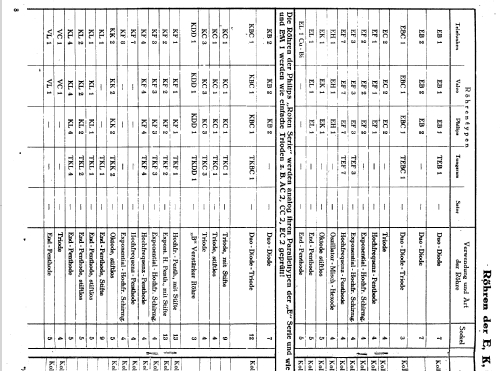

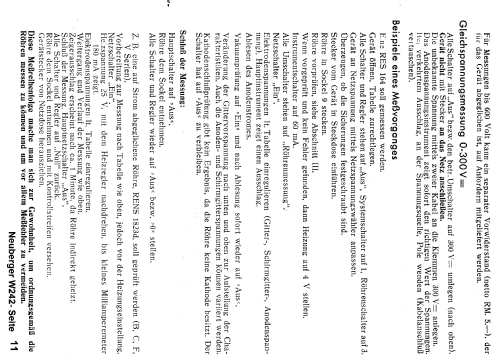

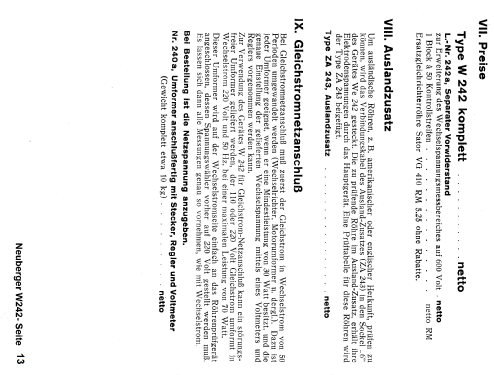

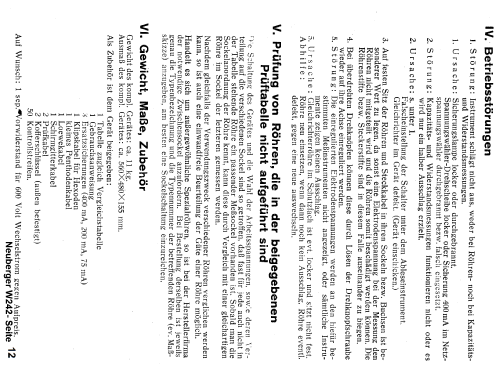

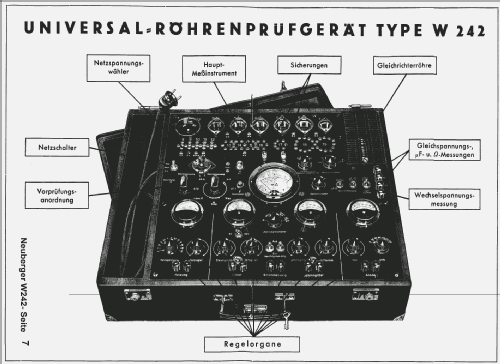

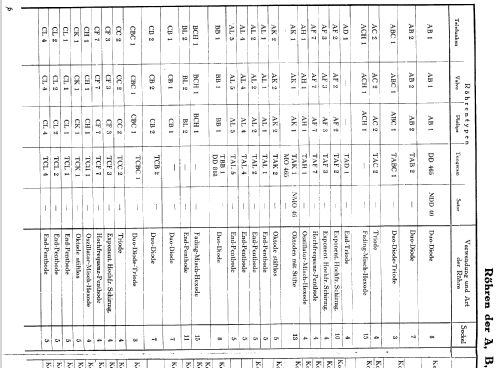

Scan aus Bedienungsanleitung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- VG410
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Röhrenprüfgerät We242 - W242 - Neuberger, Josef; München
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 560 x 155 x 480 mm / 22 x 6.1 x 18.9 inch
- Notes
-
Verschiedene Schreibweisen in der Literatur: We242, WE242 und W242.
Zur Prüfung von deutschen Metallröhren und VL4 und VCL11 gibt es das Zusatz-Röhrenprüfgerät Type MZ249A .
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 275.00 RM
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
