• Country
• Germany

• Manufacturer / Brand
• Neuberger, Josef; München

• Year
• 1967 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 118555

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 2N3709 2N3709 AAY21 AAY21 AAY21 AAY21 AAY21

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1 x 1.5 & 2 x 15 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

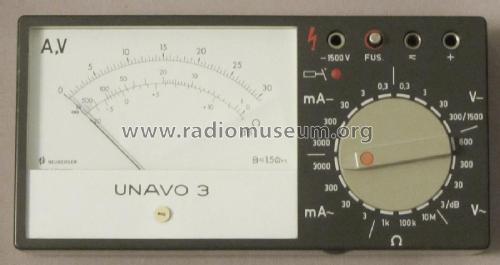

• Model: Unavo 3 - Neuberger, Josef; München

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 182 x 92 x 40 mm / 7.2 x 3.6 x 1.6 inch

• Notes

• Vielfachmessinstrument:
  Messbereich V DC 0-0.3/30/300/1500 V;
  Messbereich V AC 0-3/30/300/600 V;
  Messbereich A DC 0-0.3/3/30/300/3000 mA;
  Messbereich A AC 0-3/30/300/3000 mA;
  Messbereich Ohm 0-1 k/100 k/10 M;
  Messbereich dB -20 bis 52 dB 3 Bereiche.

  Wie Unavo 2, aber Abschaltung bei 10facher Überlast.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 225.00 DM

• Mentioned in
• Funkschau (1967/21, Seite 1788)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
