• Country
• Germany

• Manufacturer / Brand
• Neuberger, Josef; München

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 327098

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1x AA 1,5 V & 1x IEC 10 FS 15 V Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Unavo 5 - Neuberger, Josef; München

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 182 x 92 x 40 mm / 7.2 x 3.6 x 1.6 inch

• Notes

• Material:

  a) obere Halbschale (gelb): Plastikgehäuse (Thermoplast)

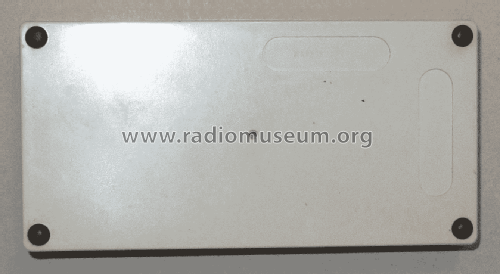

  b) untere Halbschale (hellgrau): womöglich ein Duroplast

• Author
• Model page created by Reinhard Zwirner. See "Data change" for further contributors.
