• Country
• Germany

• Manufacturer / Brand
• Neuberger, Josef; München

• Year
• 1935 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80695

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Univa 139 - Neuberger, Josef; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 85 x 36 x 125 mm / 3.3 x 1.4 x 4.9 inch

• Notes

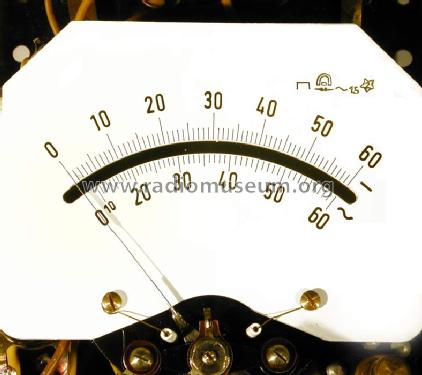

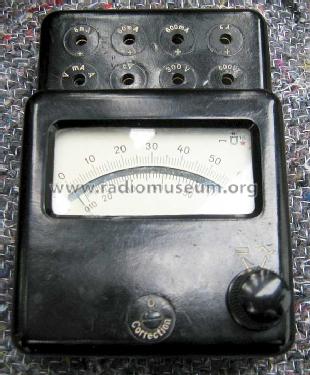

• Vielfach-Messgerät mit Spiegelskala, DC und AC umschaltbar.
  7 Messbereiche umsteckbar:
  6 mA, 60 mA, 600 mA, 6 A, 6 V, 300 V, 600 V.
  Drehspulmesswerk mit Trockengleichrichter.
  Außen angebrachter Shunt für 6A-Bereich.

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Price in first year of sale
• 72.00 RM

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by a member from D. See "Data change" for further contributors.
