Spulensatz Sp101
Neumann, Gustav; Creuzburg / Werra (Thür.)
- Country
- Germany
- Manufacturer / Brand
- Neumann, Gustav; Creuzburg / Werra (Thür.)
- Year
- 1947 ?
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 280690

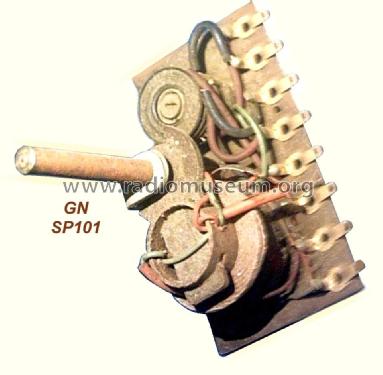

D_1947_Gustav Neumann_Sp 101 von vorn

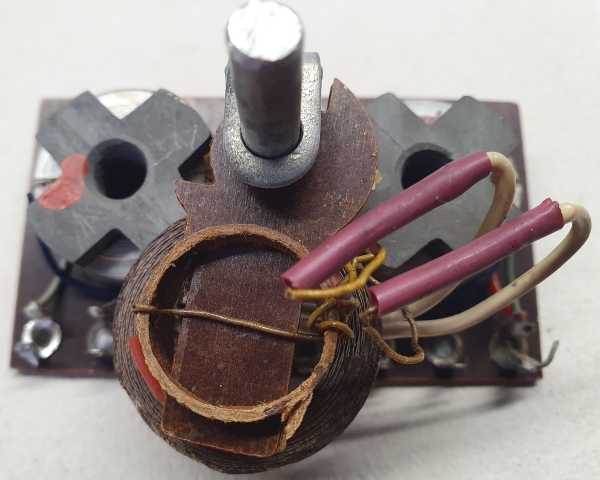

D_1947_Gustav Neumann_Sp 101 von hinten

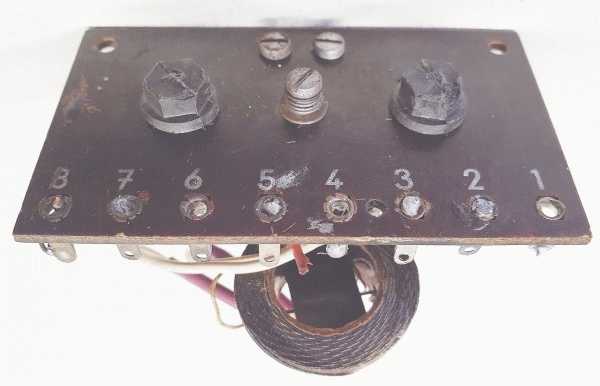

D_1947_Gustav Neumann_Sp 101 von unten
Click on the schematic thumbnail to request the schematic as a free document.
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Spulensatz Sp101 - Neumann, Gustav; Creuzburg /
- Shape
- Chassis only or for «building in»
- Notes
-
Einkreis-Spulensatz für M-L, mit variabler Antennenankopplung für M, ohne Schalter.
- Price in first year of sale
- 7.30 Mark
- Mentioned in
- Funk-Technik (FT) (1949, H. 17)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
- Other Models
-
Here you find 23 models, 19 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Neumann, Gustav; Creuzburg / Werra (Thür.)
Collections
The model Spulensatz is part of the collections of the following members.
Forum contributions about this model: Neumann, Gustav;: Spulensatz Sp101
Threads: 1 | Posts: 3
Werte Kollegen,
wer kennt diesen Spulensatz und wo wurde er eingebaut, gibt es dazu auch Unterlagen?
Dietrich Grötzer, 24.Mar.23
