• Country
• Germany

• Manufacturer / Brand
• Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin

• Year
• 1960

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 71577

• Number of Tubes
• 1

• Valves / Tubes
• AC701k

• Power type and voltage
• Powered by external power supply or a main unit. / 4 & 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

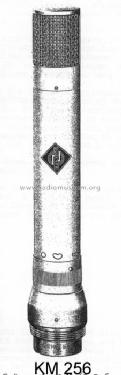

• Model: KM256 - Neumann, Georg, Laboratorium f

• Dimensions (WHD)
• 21 x 168 x 21 mm / 0.8 x 6.6 x 0.8 inch

• Notes
• Kondensator Röhrenmikrofon. Richtcharakteristik umschaltbar: Kugel, Niere und Acht. Übertragungsbereich 40 bis 15.000Hz. Empfindlichkeit 0,8mV/µb. Impedanz 200 Ohm. Röhre AC701k. Heizspannung 4V, Anodenspannung 120V.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
