• Country
• Germany

• Manufacturer / Brand
• Neumann, Georg, Laboratorium für Elektroakustik GmbH; Berlin

• Year
• 1968

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 71656

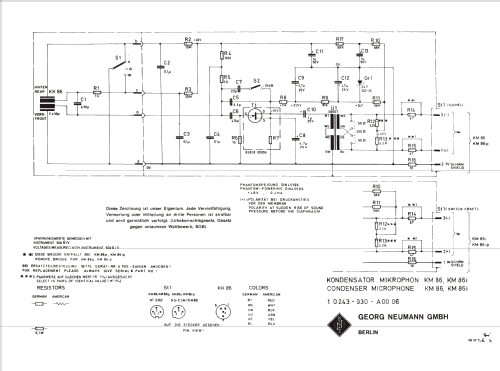

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Powered by external power supply or a main unit.

• Material
• Metal case

• from Radiomuseum.org
• Model: KM86 - Neumann, Georg, Laboratorium f

• Dimensions (WHD)
• 21 x 47 x 21 mm / 0.8 x 1.9 x 0.8 inch

• Notes
• Kondensator-Kleinmikrofon. Richtcharakteristik umschaltbar Kugel, Niere, Acht. Übertragungsbereich 40 bis 20.000 Hz, Empfindlichkeit 9,5n mV/Pa. Impedanz 200 Ohm. Phantomspeisung 48 V erforderlich.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
