• Country
• Denmark

• Manufacturer / Brand
• Neutrofon (Poul Petersen); København

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82928

• Number of Tubes
• 5

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1 UM4

• Main principle
• Superheterodyne (common); ZF/IF 447 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

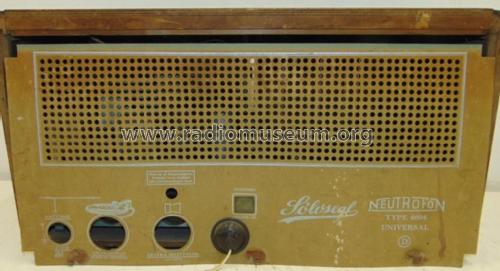

• Model: Sølvsegl 4604 - Neutrofon Poul Petersen;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 320 x 280 mm / 23.6 x 12.6 x 11 inch

• Notes

• Entsprechendes Gerät mit alternativer Röhrenbestückung produziert: UCH4 UCH4 UBL1 UY1 UM4

• Price in first year of sale
• 625.00 DKK

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 50 models, 50 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Neutrofon (Poul Petersen); København
