• Country
• Germany

• Manufacturer / Brand
• Neuwirth, Dipl.-Ing. H.-G.; Hemmingen /Hannover

• Year
• 1958 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 135387

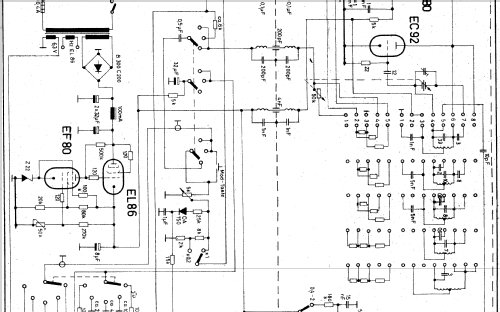

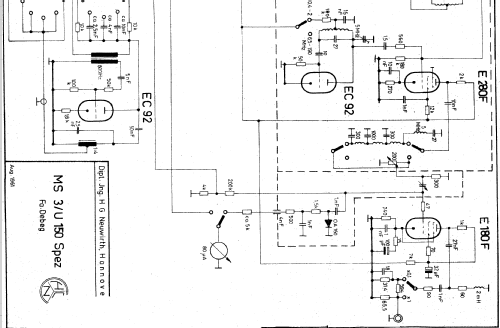

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 EF80 EC92 EC92 E180F 108C1 108C1

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Messsender MS 3/U 150 Spez. [3 Bereiche] - Neuwirth, Dipl.-Ing. H.-G.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 400 x 250 mm / 19.7 x 15.7 x 9.8 inch

• Notes

• AM/FM-Messsender.

  Modulation: 1750, 2280, 2800 Hz sowie extern
  Ausgang: 0,5 µV - 30 mV
  Frequenzbereiche:

  • 1.64 - 2.08 MHz
  • 9.6 - 12 MHz
  • 130 - 190 MHz

  Siehe auch Modell MS 3/U 150Sp. mit 5 Frequenzbereichen.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Horst Schneider. See "Data change" for further contributors.
