• Country
• Germany

• Manufacturer / Brand
• Neuwirth, Dipl.-Ing. H.-G.; Hemmingen /Hannover

• Year
• 1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 135388

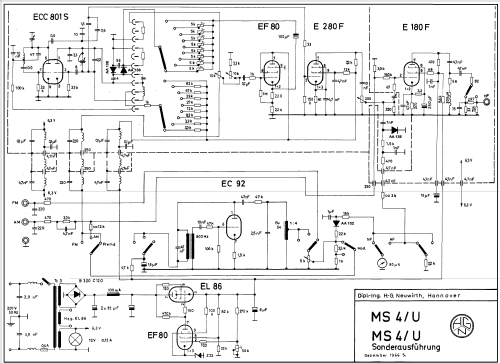

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EC92 ECC801S EF80 EF80 E180F E280F EL86

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 V Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Messsender MS 4/U Spez. - Neuwirth, Dipl.-Ing. H.-G.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 400 x 250 mm / 19.7 x 15.7 x 9.8 inch

• Notes
• Messsender FM/AM/extern:
  1,64-2,08 MHz, 9,6-12 MHz, 20-29-42-57-80-110-160-230 MHz. 0,1 uV - 40 mV

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Horst Schneider. See "Data change" for further contributors.
