• Country
• Hong Kong

• Manufacturer / Brand
• Nicosonic, Hong Kong

• Year
• 1982 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225237

• Number of Transistors
• 5

• Semiconductors
• 2SC184 2SC945 2SC184 2SD227 2SD227

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

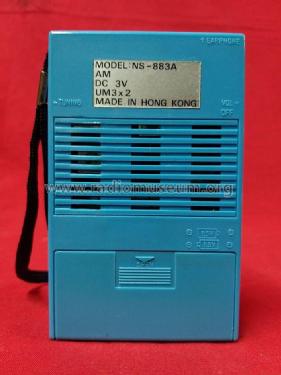

• Model: AM NS-883A - Nicosonic, Hong Kong

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 67 x 105 x 26 mm / 2.6 x 4.1 x 1 inch

• Net weight (2.2 lb = 1 kg)
• 0.140 kg / 0 lb 4.9 oz (0.308 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.

• Other Models

• Here you find 7 models, 7 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nicosonic, Hong Kong
