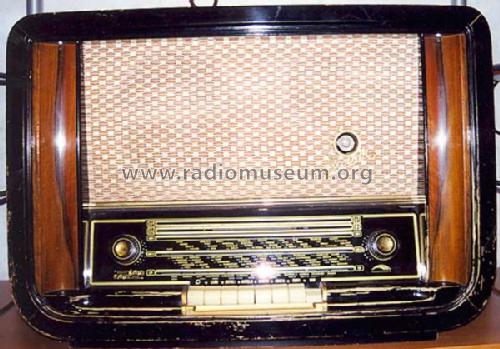

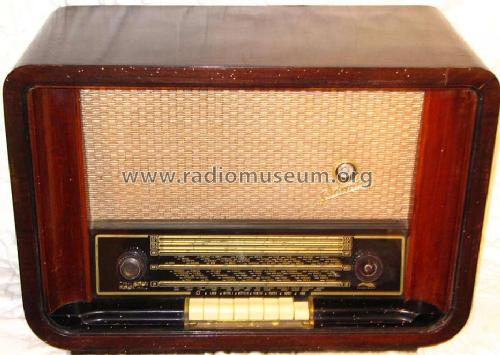

Sonata 54WU 2 Lautsprecher

• Country
• Germany

• Manufacturer / Brand
• Niemann & Co., Werner (Nicolette), Rundfunkwerk Sonata; Halle (Saale)

• Year
• 1954–1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16005

• • Brand: Nicolette

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

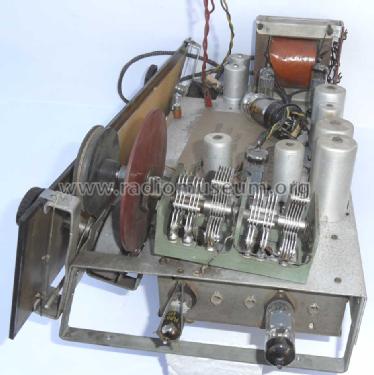

• Number of Tubes
• 8

• Valves / Tubes

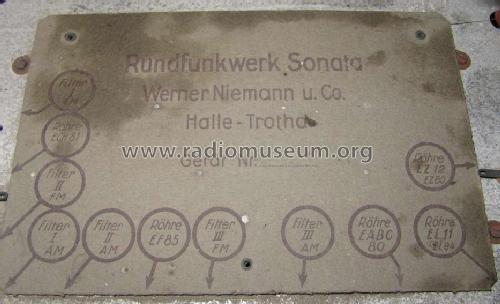

• EF85 EC92 ECH81 EF85 EM11 EABC80 EL84 or EL11 EZ80 or EZ12

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 130, 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 18 cm = 7.1 inch

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sonata 54WU [2 Lautsprecher] - Niemann & Co., Werner

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 440 x 325 mm / 25.6 x 17.3 x 12.8 inch

• Notes
• 2x Mittelwelle, 3x Kurzwelle, stetige Klangfarbenregelung, Bandbreitenschalter. Zusätzlich Hochtonlautsprecher 1,5W, 15cm. Gehäuse Edelholzfurnier oder Pianolack schwarz (Fa. Blüthner).

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 630.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Historische Radios Band IV (192B)

• Literature/Schematics (1)
• Radio und Fernsehen 10/1954 und 06/1956

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
