• Country
• Argentina

• Manufacturer / Brand
• Noblex Argentina SA; Nobleza Radio; Buenos Aires

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 199658

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 2SB54 2SB56 2SB56

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

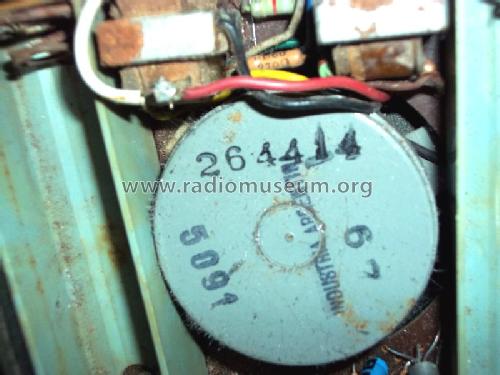

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

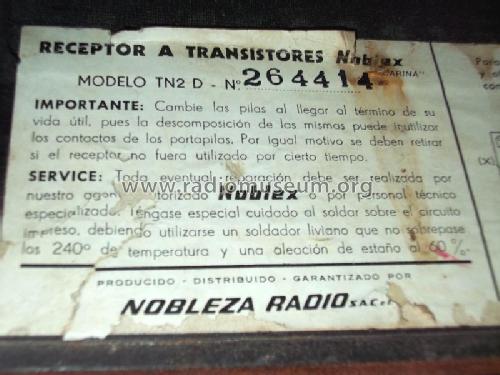

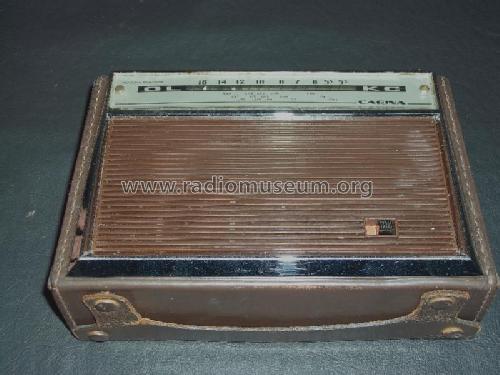

• Model: Carina TN2D - Noblex Argentina SA; Nobleza

• Shape
• Portable set > 8 inch (also usable without mains)

• Author
• Model page created by Dario Marujo. See "Data change" for further contributors.
