57 Ch=497
Nock & Kirby, (Bel-A-Tone); Sydney
- Country
- Australia
- Manufacturer / Brand
- Nock & Kirby, (Bel-A-Tone); Sydney
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345733
Part of my collection

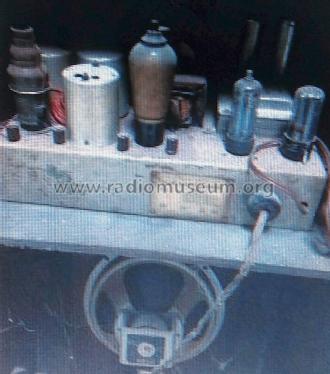

Some valves are not correct to the vintage.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 57 Ch=497 - Nock & Kirby, Bel-A-Tone;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 38.5 x 21.5 x 12 inch / 978 x 546 x 305 mm
- Notes
-
The radio features variable volume and tone control, cog-driven tuning gang, a 10-inch Magnavox speaker, and a mother-of-pearl stationized dial.

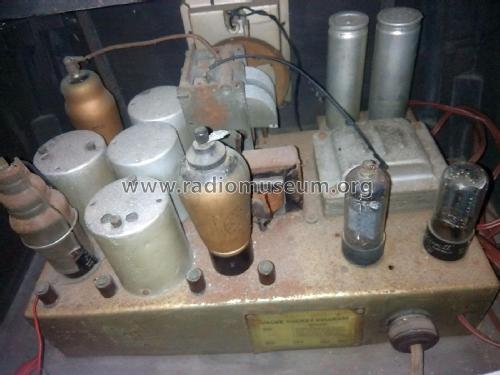

The chassis resembles one made by Howard Radio Pty. Ltd.
- Mentioned in
- -- Collector info (Sammler) (Classic Radios, Page 51, by Ron Wesenberg)
- Author
- Model page created by Ronald Wesenberg. See "Data change" for further contributors.
