• Country
• Germany

• Manufacturer / Brand
• Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg

• Year
• 1958

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 233904

• • Brand: Noroton

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• E88CC EC92 ECH81 ECH81 EF89 ECC81

• Main principle
• Superhet, double/triple conversion

• Tuned circuits
• 16 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: 12642/58 Z-Sdfg.II - Nogoton, Norddeutsche

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 300 x 50 x 95 mm / 11.8 x 2 x 3.7 inch

• Notes

• UKW-AM-Empfänger, Kommerzielle Ausführung für das  2m Band, 144-146 MHz

• Mentioned in

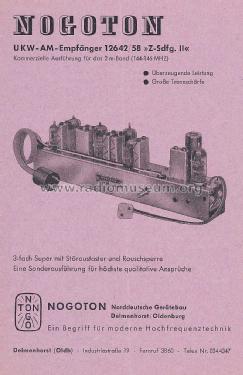

• -- Original prospect or advert

• Author
• Model page created by Jan Peter Brömme. See "Data change" for further contributors.
