• Country
• Germany

• Manufacturer / Brand
• Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg

• Year
• 1965 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 121745

• • Brand: Noroton

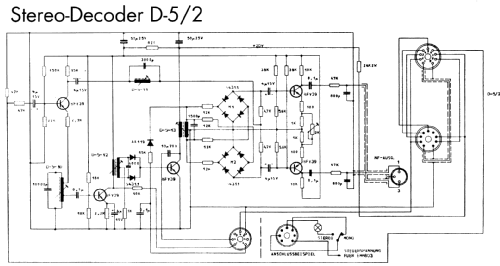

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BFY39 BFY39 BFY39 BFY39 BFY39 AA119 AA119 AA119 AA119 AA119 AA119 AA119 AA119 AA119 AA119 AA119

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo-Decoder D-5/2 - Nogoton, Norddeutsche

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 150 x 35 x 90 mm / 5.9 x 1.4 x 3.5 inch

• Notes
• Stereodecoder passend für UK 12642/61 Z-spezial und Z-Baustein.
  Optional dazu Stereo-Indikator S-2. Einbauplatine (PCB).

• Price in first year of sale
• 120.00 DM

• Mentioned in
• RIM Bastelbuch 1965

• Author
• Model page created by Georg Richter. See "Data change" for further contributors.
