UKW-Einbausuper 12642/61 Z-Sdfg-B 32,5-38,5 MHz

Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg

Data
Forum
Pictures
Collections

  • Year
  • 1961 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 223130
    • Brand: Noroton

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage
  • Tuned circuits
  • 13 FM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Powered by external power supply or a main unit. / 6,3 & 200 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: UKW-Einbausuper 12642/61 Z-Sdfg-B [32,5-38,5 MHz] - Nogoton, Norddeutsche
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 325 x 95 x 50 mm / 12.8 x 3.7 x 2 inch
  • Notes
  • Einbaugerät für drahtlose Mikrofon-Sende-Empfangsanlagen.
    32,5 - 38,5 MHz.
  • Price in first year of sale
  • 276.00 DM
  • Mentioned in

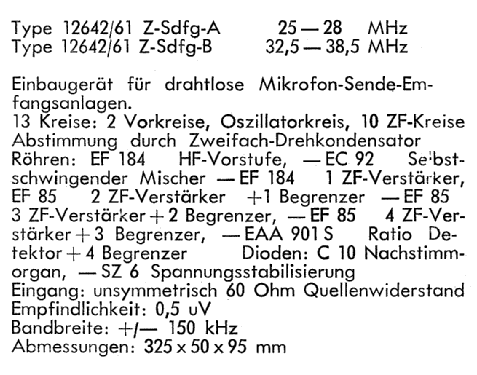

  • Mütron-Katalog, 1963
  • Literature/Schematics (1)
  • Rimpex-Katalog, 1966
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
