UKW-Einbausuper 12642/61 Z-Sdfg-D 86-100 MHz

Nogoton, Norddeutsche Gerätebau; Delmenhorst/Oldenburg

Data
Forum
Pictures
Collections

  • Year
  • 1961 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 223135
    • Brand: Noroton

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 200 & AC 6,3 & AC 6,3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case, TUBES VISIBLE
  • from Radiomuseum.org
  • Model: UKW-Einbausuper 12642/61 Z-Sdfg-D [86-100 MHz] - Nogoton, Norddeutsche
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 325 x 95 x 50 mm / 12.8 x 3.7 x 2 inch
  • Notes

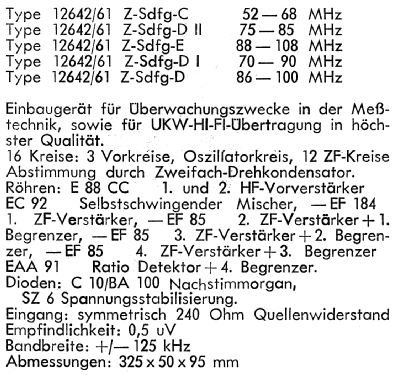

  • UKW-Einbausuper, kommerzielle Ausführung. Für Überwachungszwecke in der Messtechnik, sowie für UKW-HiFi-Übertragung mit hoher Qualität.
    Frequenzbereich: 86-100 MHz.
  • Net weight (2.2 lb = 1 kg)
  • 1 kg / 2 lb 3.2 oz (2.203 lb)
  • Price in first year of sale
  • 238.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • Mütron-Katalog, 1963
  • Literature/Schematics (1)
  • Rimpex-Katalog, 1966
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
