• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1930–1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8064

• Number of Tubes
• 3

• Valves / Tubes
• RE034 RE034 RE114

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Form B3 [Holz] - Nora, Aron, Heliowatt; Berlin

• Dimensions (WHD)
• 150 x 60 x 150 mm / 5.9 x 2.4 x 5.9 inch

• Notes
• «Volksempfänger»

• Price in first year of sale
• 45.00 RM

• Source of data
• Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in

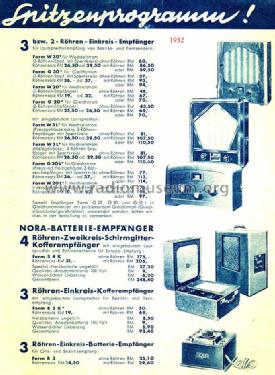

• Katalog Radio-Zentrale Prohaska 1932/33

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
