• Year
  • 1937 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 277027

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common); Export model
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 120-160 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

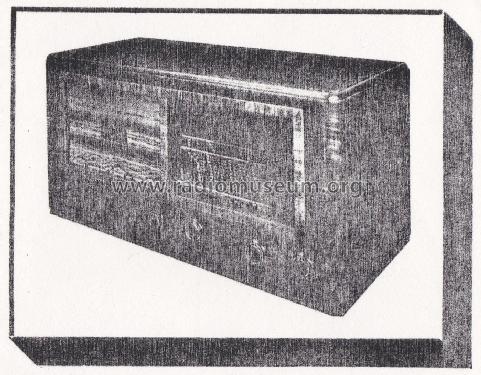

  • Model: B47 Luxe - Nora, Aron, Heliowatt; Berlin
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Wellenbereiche:

    • MW: 195-565 m
    • LW: 950-2000 m.

    Eingetragener Preis gilt ohne Batterien.

    Es gibt auch ein Nora Modell B47 mit nur 4 Röhren.

  • Price in first year of sale
  • 2,375.00 BEF
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Gidi Verheijen. See "Data change" for further contributors.
