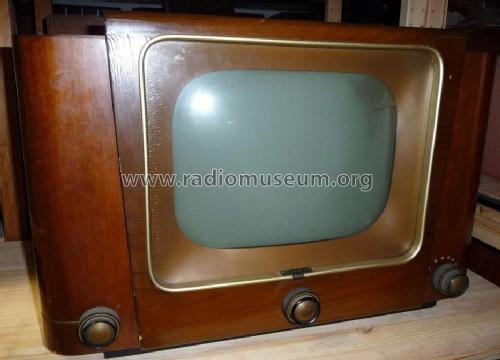

Bellevue F200/III (3)

• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1953/1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 71937

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• MW36-44 PCC84 EF80 EF80 EF80 EF80 ECC81 ECC81 PL83 ECC82 PL81 PCL81 PCL81 PY81 EY51 EB41 EB41 PCL81

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bellevue F200/III - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 600 x 397 x 417 mm / 23.6 x 15.6 x 16.4 inch

• Notes
• Typ Nr. F200/I+II sind bis auf die Vorstufe (EF80) und Bildröhre (MW36-24) identisch. VHF Kanäle 5-11, induktiv durchstimmbar.

• Net weight (2.2 lb = 1 kg)
• 23.5 kg / 51 lb 12.2 oz (51.762 lb)

• Price in first year of sale
• 1,095.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Kat.d.Rundf.GrossH.1953/54

• Other Models

• Here you find 633 models, 556 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nora, Aron, Heliowatt; Berlin
