• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20259

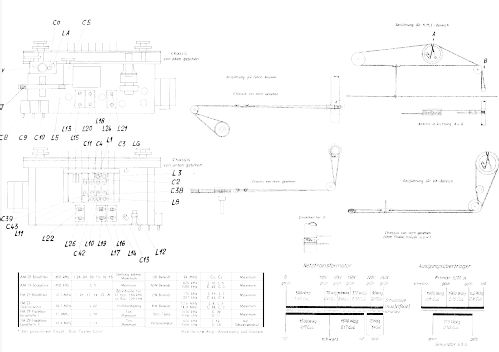

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM34 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

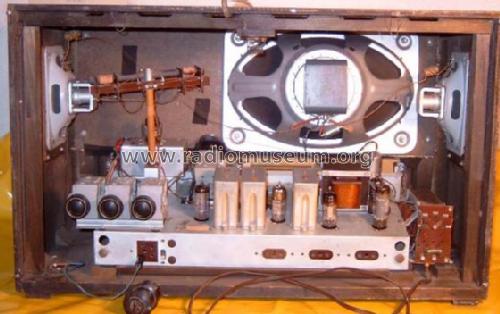

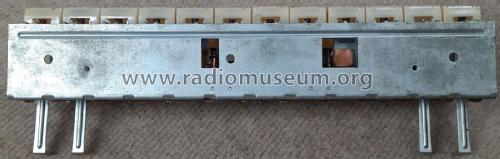

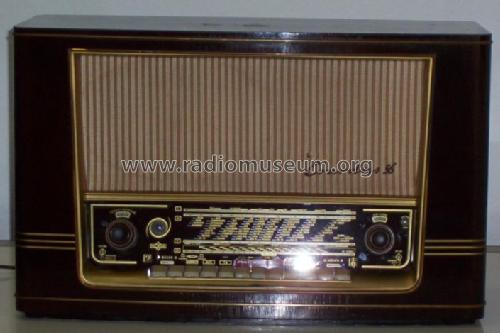

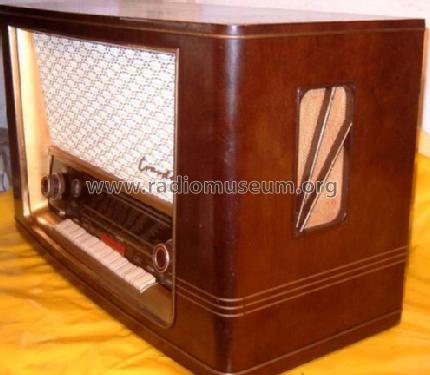

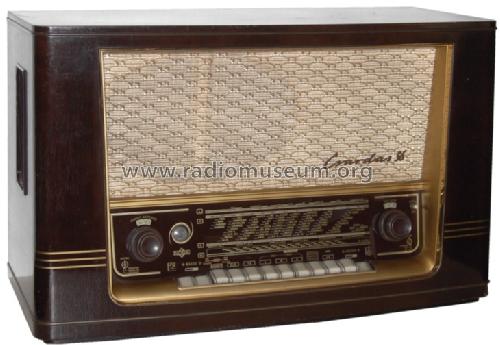

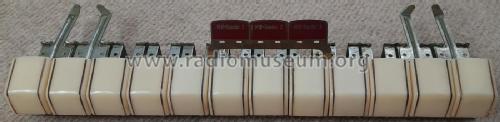

• Model: Csardas 56 W1140 - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 400 x 300 mm / 25.6 x 15.7 x 11.8 inch

• Notes
• 3 voreinstellbare MW-Sender über 3 rückseitige Drehkos, Kurzwellenlupe über UKW-Drehko, Ferrit+Rahmenantenne

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Price in first year of sale
• 428.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Other Models

• Here you find 633 models, 556 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nora, Aron, Heliowatt; Berlin
