• Country
• Germany

• Manufacturer / Brand
• Nora, Aron, Heliowatt; Berlin

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19571

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 EF41 ECH81 EF41 EM35 EBF80 EABC80 EL84

• Main principle
• Superhet with RF-stage; ZF/IF 452/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

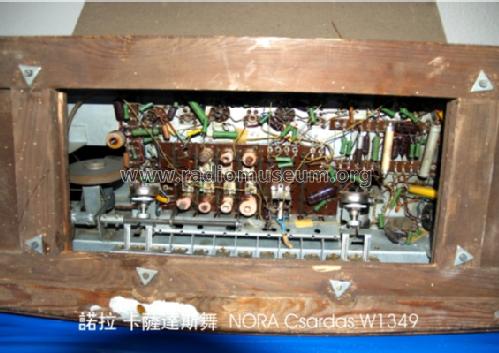

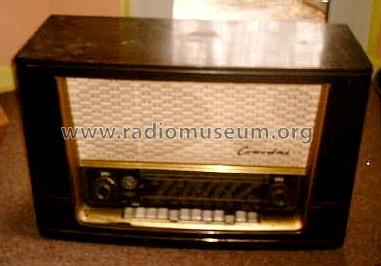

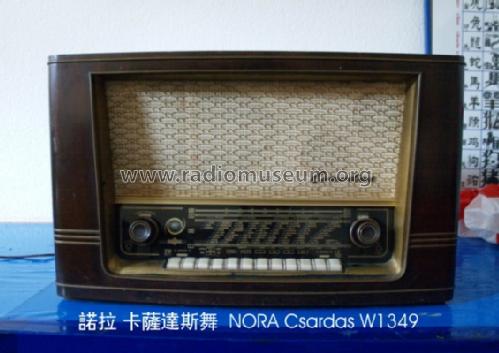

• Model: Csardas W1349/3D - Nora, Aron, Heliowatt; Berlin

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 402 x 300 mm / 25.6 x 15.8 x 11.8 inch

• Notes
• KW - Lupe, Bandbreite schaltbar.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Price in first year of sale
• 448.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1954/55
